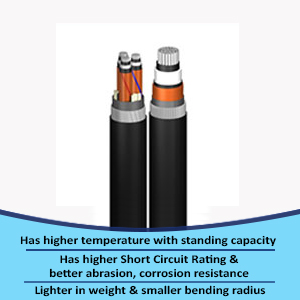

LT XLPE POWER AND CONTROL CABLES

1.1 KV Power Cables

Application :-

• The Power Cables are used under ground as well as over head transmission of power in power plants, industries, projects and all other electrical installations.
• Different combinations such as Aluminum, Copper conductors, round solid conductor, stranded conductors, sector shaped conductors, taped inner sheath, extruded inner sheath, Round steel and aluminum wire / Flat galvanised steel strip Armored/ unarmored, single /double outer sheathed etc are available.
• Types of insulation include PVC, HR PVC. The inner & outer sheaths can be PVC, HR PVC, FRLS, HR-FRLS or FR depending upon the application and requirement of customers.

Features :-

• Finolex manufactures different types with combinations of specifications as mentioned above as per IS 1554 Part I for cables upto 1100V

1.1 KV Copper Control Cables

Application:

• These cables are used for under ground as well as over head transmission of power to the control panels in power plants, industries, projects and all the electrical installations.
• Different variations such as round solid conductor / stranded conductors, taped inner sheath / extruded inner sheath, Round steel / aluminum wire / Flat galvanised steel strip Armored/ unarmored, single / double outer sheathed etc are available.
• Insulation is of XLPE . The sheath can be PVC, HR PVC, FRLS, FR or HR-FRLS depending upon the application.

Features

• Finolex manufactures all above combinations as of 1.1 KV grade Control cables as per IS 7098 Part I from two cores to 61 cores in 1.5 and 2.5 sq mm sizes. All tests as per relevant specifications are conducted.
