CCS Cables

Application :-

• These cables are used for transmission of Video and Audio signals and are used in DTH / CATV Industry.
• The number of CATV channels increasing by the day. These cables are ideal for such multi channel applications.

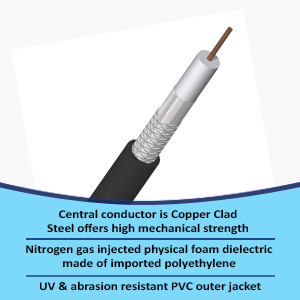

• The central conductor is made of solid copper, which makes it ideal for power pass application.

Features :-

• Central conductor is made of 99.97 % pure solid copper manufactured in house. It is insulated with Nitrogen gas injected physical foam dielectric manufactured from imported polyethylene, which enhances the foaming upto 70%, which leads to lower and uniform attenuation.
• This also ensures that the insulation is free from impurities and the foam cell structure is uniform across entire length. The secondary conductor is made of specially designed poly-aluminum tape bonded with sufficient overlap on dielectric.
• The second shield is of imported aluminum alloy wire braiding with high tensile strength and has more than 60% coverage suitably flooded with jelly so that the weather effect on conductors is negligible.
• The outer jacket that has specially formulated PVC manufactured in-house, is of UV resistant nature, for robust performance and long life. Each coil/ bobbin is tested on computerized Test equipment for Attenuation, Impendence and SRL upto 1GHz.
